FUNSR MINI, equipped with an optimized twist module, features an all-metal housing and joint motors — the most powerful single-axis stroker

General
1

微信图片_20260429181118_696_16
微信图片_20260429181118_696_161200×1200 644 KB

Why choose FUNSR MINI?

1. The only single-axis device on the market that adopts joint motors.

MotorType
MotorType510×265 10.9 KB

In the FUNSR 1 series, we first adopted BLDC Servo Motor.For the FUNSR MINI, we upgraded to a new power system with joint motors.

* Joint motors integrate a brushless DC motor, high-reduction gearbox, dual encoders, and drive controllers.This delivers higher integration and a lower failure rate.
* With a built-in transmission system, mechanical noise is significantly reduced.
* It outputs greater torque to sustain higher loads without overheating.

2. Extremely low noise level, verified by close-range decibel meter testing.

3. New-generation twist module

Adopting a new ball bearing structure to replace the original 3D-printed components, it effectively reduces friction noise. A comparison video is provided below.

4. Device parameter adjustment supported

  • Adjust the maximum stroke of the deviceDAG parameters support arbitrary values within the range of 1 to 3 to customize the maximum stroke according to personal needs.

    ScreenShot_2026-04-29_182508_249
    ScreenShot_2026-04-29_182508_249405×333 9.47 KB

  • Adjust the maximum speed of the device

  • Adjust the default initial position; startup can be set to bottom, middle or top position.

Offline Mode

It is fully compatible with the OSR ecosystem, supporting linkage with scripts, VAM and various games. Meanwhile, it also features an offline mode with five adjustable speed levels.

Device Optimizations:

  • Upgraded Buckle Structure
    Brand-new receiver fixing buckle design for easy assembly and disassembly, and more convenient storage.

  • Rotary Protection Interface
    Adopts an enclosed rotary socket solution to avoid exposed connectors, effectively preventing short circuits caused by accidental contact for safer use.

  • Optimized Chip Solution
    Highly integrated chip module eliminates manual soldering processes, greatly improving stability and durability.

  • Aluminum Alloy Metal Shell
    Upgraded textured appearance with excellent heat dissipation performance, achieving long-term temperature control and more stable device operation.

  • High-Precision Bearing Structure Precision bearings are adopted for all connecting components, reducing mechanical friction at the source and effectively lowering operating noise.

Device Specifications:

Weight:

  • Without default bracket: 698g
  • With default bracket: 1250g (high-strength sturdy bracket)

Maximum Stroke: 17.92 cm
Maximum Load: 1.5 kg
Maximum Speed: 800 mm/s
Noise: Around 50 DB

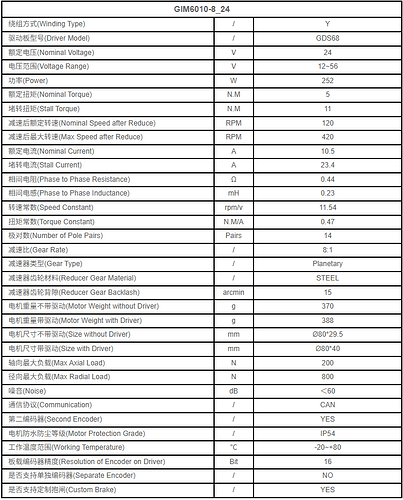

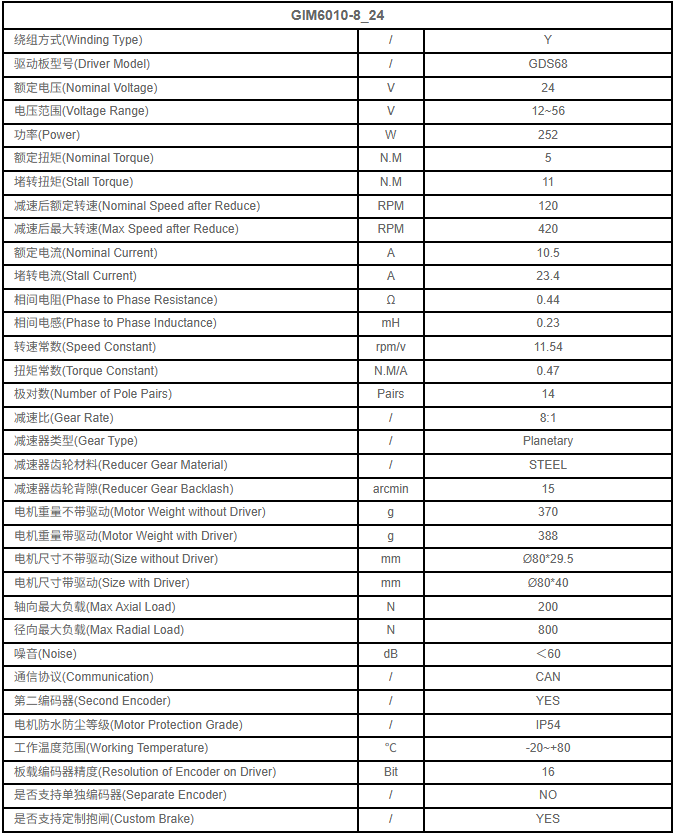

Motor Parameters:

MotorParameters
MotorParameters674×836 58.1 KB

Pricing & Shipping

Pricing

  • Main Unit + Bracket: $219.99
  • Main Unit + Bracket + Twist Module: $264.99

Early Bird Coupon: Earlybird $10 off

Shipping Time
Latest shipment: Late May

Package Contents
Main device, standard bracket, accessories, bracket adapter, data cable, power adapter

Special Note
All units will be shipped with a black metal shell（The demo unit currently uses a silver-gray metal shell.）

11 Likes
:studio_microphone: [FunSR MINI] Sound Test & Review - A Pocket Rocket?
:microscope: FUNSR Mini – The Ultimate In-Depth Review | With Handy 2 Pro & FUNSR PRO Comparison
2

wow the quiet twist sounds super quiet! would love to see reviews on this.. and would this be compatible w/ other devices?

3

Ordered, looking forward to it! finally a quite twist option.

4

It will be released, but it may take a few weeks as minor structural modifications are required.

1 Like
5

Thank you for your purchase!

6

What is a latest shipment?

7

Mid-May, shipped in order of placement.

8

Shipment starts mid may then. OK. Can customs be handled by you?

9

im using SSR1 with fan under a blanket and it works fine even 2h+ but im kinda worried this one won’t work, seeing how the FUNSR Pro necessitates a fan. Also, is there an option to mount it via VESA ? Does the twist version also come with the default handy receiver ?

10

This one looks fanless? Would be nice.

11

Under normal use, there are no heat dissipation issues. The motor delivers powerful performance, and the full-metal housing provides excellent natural heat dissipation.

12
  1. Theoretically, this model offers slightly better performance than the SSR1.
  2. VESA mount compatible.
  3. Comes as standard.
13

Got mine, working on a review.

Not too concerned about radiation since the casing is metal. The Pro doesn’t really requires a fan unless pushing to its limit.

14

This looks pretty great. I’d like to experience a twist-capable FUNSR with handy sleeves. Would that work well ? I was also interested in the FUNSR2.0 but this looks a bit better for this purpose.
It also does come with an adapter to support the device on a table, right ?

Thank you in advance

15

Using this arm structure, does it mean it is moving in an arc instead of a straight line?

16

Similar to the OSR2, it moves in an arc but with a very low curvature.

17

Yes An adapter is included by default, along with a converter for standard VESA mounting dimensions.

18

And, just to confirm

It does work with Handy sleeves ? Aside from the motor, what is the biggest difference between this and the FunSR 2.0 with twist ? Since I think (please correct me if I’m wrong) that it also is able to handle handy sleeves

Thank you in advance for your answer

19
  • No significant difference.
  • The Handy toy can be secured using the default accessories.
1 Like
20

Le module de rotation est compatible avec le funsr pro ? Est ce le même moteur pas à pas ?
Ma mise à niveau est disponible sous forme de kit ? Ou peut-on imprimer/acheter les nouveaux composants ? Merci
