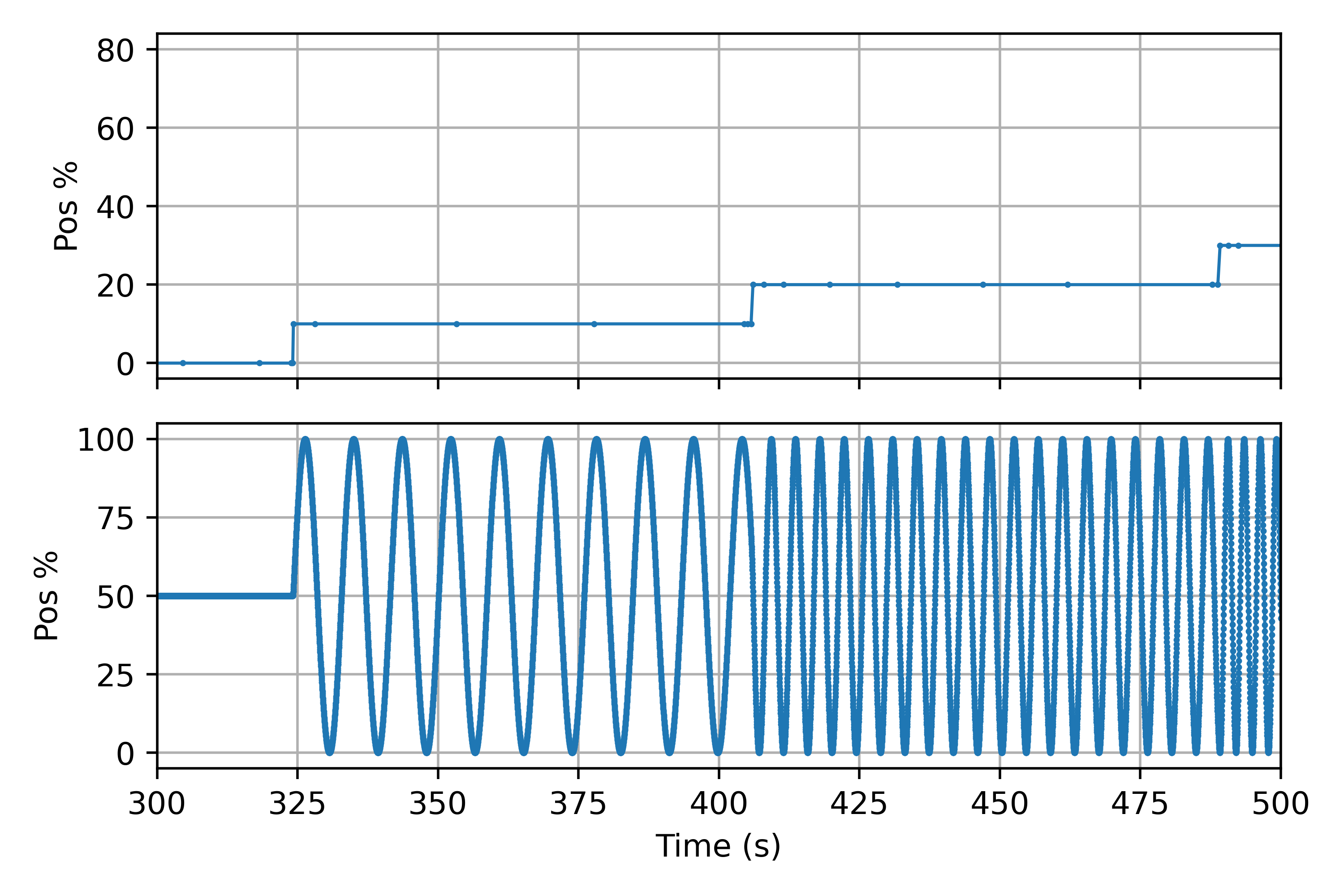

I thought it might be a nice little fun project to make a python script to convert vibrator scripts to linear (handy) scripts. This has been done before but i thought it might be fun to try and see what happens. The results look a lot better than what i imagined it would work. First I tried i more primitive approach by just changing the frequency of a sine wave, but then i realized that frequency modulation is required to get a smooth curve out. The results look very nice, here are three regions. First a slow ramp in steps:
Then a decrease in to speed to a stop and a peak:
And finally, a part that i would be sure would go wrong:
A kind of ‘stroking’ in the script itself. which goes nicely from slow to fast
A little bit on how it works: the frequency of the wave is taken as position of the vibrator script, 0 means no handy movement 100 means max speed (okay not really max max, i took it at 400 mm/s based on this forum - and if my calculations are correct)
There is one final problem my converted script has waaay to many points one every 20 ms - this is still work in process. I would like to take multiple points per sine wave to little smoothness it lost. Any tips?
Update! now it’s working!
unfortunately i can’t test it yet due to lack of privacy but curious if someone else would like to try it (feedback is very much welcome)
